Advanced Technical Automatic Block Molding Machine With Great Advantages

Price: 1000.0~100000.0 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Henan, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: QTJ4-26A
Production Capacity: 50 every month
Delivery Date: 7~15 working days after the...
Type: Others
Molding cycle: 26s
Shift capacity: 20000-25000pcs
Pallet size(mm): 850*550*40
Brick size(mm): customized
Wetting: not needed
Means of Transport: Ocean
Packing: Export standard container o...
Application: Others
Brand Name: ZHONGCHENG
Brick pcs per mold: 3-26
Brick types: hollow or solid bricks
Machine weight (kg): 3200
Brick curving time: 8 hours
Price: You will satisfy

1.Famous brick making machine
2.Full-automatic operation
3.Reliable operation
4.Super excitation force system
5.CE

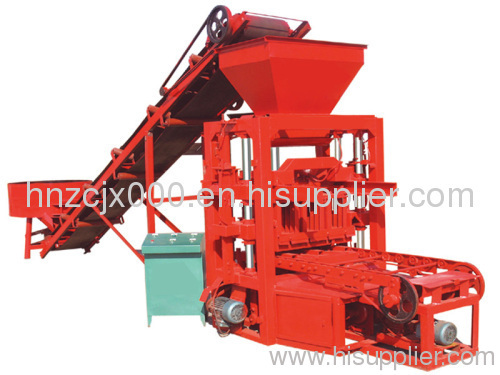

Advanced Technical Automatic Block Molding Machine With Great Advantages

A: Feature of QYJ4-26A block molding machine:

QYJ4-26Ablock molding machine is a semi-automatic model that has developed on the basisof QTJ4-26 model, integratesthe merits ofpast small and medium-sized blockmolding machine.The aircraft uses four-pillar orientation, square steel rack,the bottom mold uses the directional vertical vibration mode.The machine equipswith an air compressor, making the process of advance and retreat of uppermodule, material-discharging control use pneumatic, achieving the gas &electricity integrating control, therefore greatly enhance theproductivity.
B.QYJ4-26A block molding machine Detailed Specifications:

Molding blocks
240×115×5326 bolck/mold
390×190×1904 bolck/mold
390×240×1903 bolck/mold
Molding cycle
26s
productivity
30004000 block/shift
Solid Standard brick 20000-250000blocks
Vibration frequency
4200r.pm
Motor power
10.35kw
Overall dimension
2600×1700×2700mm
Pallet size
850×550×40 mm
Total weight
3200kg

C.Service Promise

Beforesales help customers to choose the most applicable device models,provideadvanced, energy-saving, practical process and responsible for site planning anddesign.
SalesRigoroustesting before products leaving the factory,invited clients to test machinesimulatly on the spot. to raise an objection, delivery in accordance with thecontract.
Aftersales: the company to send technical persons to install and debug the equipmentand training operators,we can design and produce the products. according tocustomer's special requirements.
Solemnpromise: the local machine warranty one year(except wearing parts)
Warm tips:the prices in the web only for reference, according to raw material pricefluctuations, Specific price is subject to the calling.
