China Top Brand Portable Brick Making Machine Used In Industry

Price:	1000.0~100000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QYT10-15B

Production Capacity: 50 every month

Delivery Date: 7~15 working days after the...

Type: Others

Molding cycle: 15s

Shift capacity: 19200-92160pcs

Pallet size(mm): 1080*850*40

Brick size(mm): customized

Wetting: not needed

Means of Transport: Ocean

Packing: Export standard container o...

Application: Others

Brand Name: ZHONGCHENG

Brick pcs per mold: 10-48

Brick types: hollow or solid bricks

Machine weight (t): 13.8

Brick curving time: 8 hours

Price: You will satisfy

1.Famous brick making machine
2.Full-automatic operation
3.Reliable operation
4.Super excitation force system
5.CE

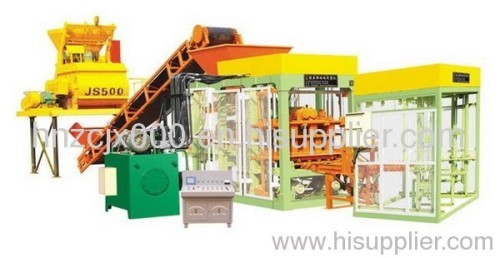

China Top Brand Portable Brick Making Machine Used In Industry

1. Introduction of QYT10-15 brick making machine:

1.Structure design of super steel,widely usingimported original, making the body more stable and reliable.
2. Highly efficient, super excitation system design,using the pressure and flow which is controlled by computer hydraulic system,realizing the vertical synchronous vibration, frequent conversion, brake,two-side synthesis output. It transports the vibration to the every part of modebox efficiently.
3. Whole machine usesPLC and man-machine interface control system, which can achieve random signalanalysis, fault diagnosis and parameter setting, to ensure the besteffectiveness of the machine.
4. It isequipped with special hydraulic code machine, can easily realize big yield,automatic production, save a lot of investment of human, maintenance yard andcash. Semi-enclosed compulsory cloth system makes the feeder more uniform andfaster.

2.Main technical parameters of QYT 10-15 brick making machine:

Forming blocks	Molding cycle	Theory output	Host power	Whole weight	Outline size	Pallet size
390×190×190 10pieces/module 19200pieces/shaft 240×115×90 26pieces/module 49920pieces/shaft 390×190×53 48pieces/module 92160 pieces/shaft	about 15s	About92160pieces/shaft (Standardbrick)	34.5KW	13.8T	7200× 2290× 2825mm	1080× 850× 40mm

3. Main technical parameters of Concrete mixer:

Type	JW 350	JW 500
Mix per time(L)	350	500
Main shaft speed(r/min)	35	35
power(kw)	5.5	14.75
Overall dimensions(mm)	φ1300*1200	φ1600*4000

4.Belt conveyor :

Type	Capacity(m3/h)	Roller diameter(mm)	Motor power(kw)
B500	25-143	500	1.5-3
B650	40-243	630	1.5-4.5
B750	75-500	630	2.2-7.5
B1000	140-770	800	4-11
B1200	200-980	1000	5-22

Service Promise:

Before-sale services: Weguide customers to choose the best applicable device type and provide theadvanced, energy-saving and practical technological process, and also we areresponsible for the site planning and design.

On-sale services: products must be inspected strictlybefore sell, customers are invited to simulate and test machine on-the-spot andraise objections. We will organize delivery according to the clauses stipulatedin the contract.

After-sale services: OurCompany will send professional engineers to guide installation, debugging andtraining operators until customers are fully satisfied. Moreover, we can designand manufacture products according to customers' specificrequirement.
