2013 Brand New Electric Concrete Batching Machine For Production Line PLD800 manufacturer from China Henan Zhongcheng Machinery CO,.Ltd

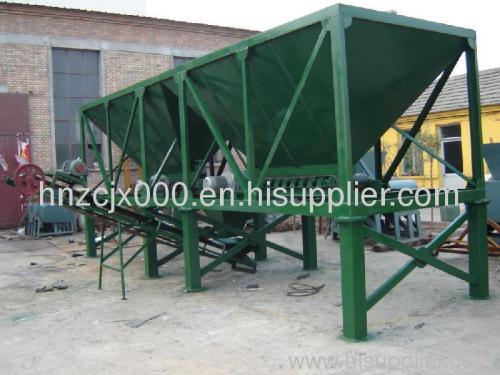

2013 Brand New Electric Concrete Batching Machine For Production Line

Price:	1000.0~100000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: PLD800

Production Capacity: 50 every month

Delivery Date: 7~15 working days after the...

Type: Others

Weighing hopper volume(L): 800

Productivity(m3/h): 48

Batching accuracy: -+2%

Color: as you need

Performance: stable

Means of Transport: Ocean

Packing: Export standard container o...

Application: Others

Brand Name: ZHONGCHENG

Storage hopper volume(L): 2*2000

Feeding height(mm): 2600

Can match aggregate species: 2

Price: reasonable

Operation: easy

1.Zhongcheng mobile concrete batching plant
2.Reasonable structure
3.Easy operation
4.2*2000 charging capacity
5.ISO9001

2013 Brand New Electric Concrete Batching Machine For Production Line

contactJessicaLi---86-13526578789

1. Introduction of concrete batching machine:

Concrete batching machine is a kind offront-desk automatic batching equipment equipped with the mixer (single-way anddual-way). It can complete automatically the batching process of sand, stone,cement and other 3-6 types of materials.

This series of products use electronicweighing, microcomputer control, digital display and the operation of the wiredremote control, they are figured with the accurate weighing, high batchingprecision, high speed, strong controlling functions, and easy operation and soon.

If combined with the corresponding models, itcan compose of a variety of different forms, different specifications of themodular concrete mixing station.

2. Features of concrete batching machine:

This series of products adopt electronic weighing,computer control, digital display, and wired remote control. It has the featuresof accurate weighing, high batching accuracy, fast speed, strong controllingability, easy operation, reasonable design, compact structure and long servicelife.

3. Application of concrete batching machine:

Widely used in all kinds of large and medium-sizedconstruction project and concrete mixing station.

4. Technical Parameters of concrete batching machine:

parameter type items	PLD800	PLD1200	PLD1600	PLB800	PLB1200	PLB1600-I	PLB1600-II	PLB2400
Scale hopper cubage(L)	800	1200	1600	800	1200	1600	1600	2400
Storagehopper cubage(L)	2×2000	2×3500	2×4500	3×2000	3×3500	3×4500	3×4500	3×6000
productivity(m³/h)	48	60	80	48	60	80	80	120
batching accuracy	±%2	±%2	±%2	±%2	±%2	±%2	±%2	±%2
assigned aggregate species	2	2	2	3	3	3-4	3-4	3-6
Feeding height(mm)	2600	2700	2850	2900	3000	3000	3000	3000
power((kw)	6.6	9.0	10	8.8	13	(14)20	16	22
Machine weight((kg)	3110	3550	4000	3660	4220	5110	6480	7850
Weighing mode	Electric weighing	Electric weighing	Electric weighing	Electric weighing	Electric weighing	Electric weighing	Electric weighing	Electric weighing
Overall dimension (H ×W ×L )(mm)	6200×1750×2870	6000×2235×3460	6000×2000×2850	9000×2000×2900	9100×2235×300	9000(1200)×2000×2850	7840× 3000×3000	10500× 3000× 3000
Recommend mixer Model	type 500	type 750	type 1000	type 500	type 750	type 1000	type 1000	type 1500
	type 350	type 500	type 500	type 350	type 500	type 750	type 750	type 1000
		type 350	type 350		type 350	type 500	type 500	type 750

Service Promise:

Before-sale services: Weguide customers to choose the best applicable device type and provide theadvanced, energy-saving and practical technological process, and also we areresponsible for the site planning and design.

On-sale services: products must be inspected strictlybefore sell, customers are invited to simulate and test machine on-the-spot andraise objections. We will organize delivery according to the clauses stipulatedin the contract.

After-sale services: OurCompany will send professional engineers to guide installation, debugging andtraining operators until customers are fully satisfied. Moreover, we can designand manufacture products according to customers' specificrequirement.
