Very Useful Horizontal Box Crusher With Superior Quality 900*1200 manufacturer from China Henan Zhongcheng Machinery CO,.Ltd

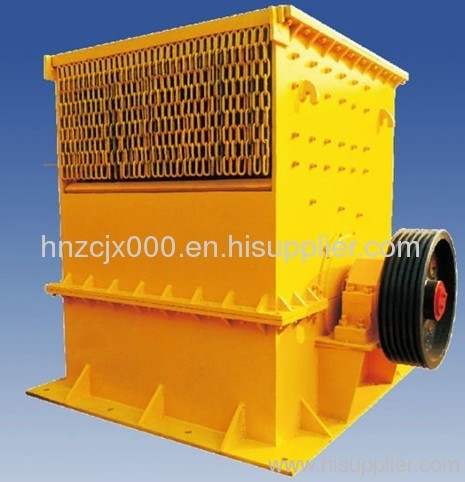

Very Useful Horizontal Box Crusher With Superior Quality

Price:	1000.0~100000.0 USD
Payment Terms:	T/T,L/C,WU
Special Groups:	box crushers (15)
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 900*1200

Production Capacity: 100 every month

Delivery Date: 7~15 working days after the...

Type: Crusher

Capacity(t/h): 70-100

Roller length(mm): 1200

Power(kw): 75-90

Warranty: 1 year

Delivery: prompt

Means of Transport: Ocean

Packing: Export standard container o...

Application: all kinds of stones, minera...

Brand Name: ZHONGCHENG

Roller diameter(mm): 900

Max.Material-in size(mm): 800

Colur: as you need

Certification: ISO:CE

1.Efficient box crusher machine
2.Reliable property
3.Good particle shape
4.Large capacity, even grain size
5.ISO

Very Useful Horizontal Box Crusher With Superior Quality

1.Box crusher features:

1. Big feed size,big crushing ratio, even discharging.
2. High-yield,granular product is occupied 85%, fully comply withrequirements.
3. Hammer shaftinstallation is adjustable, long working life.
4. Grid size isadjustable, product granular is controlled, and particle shape isgood.
5. Chassis can turn,maintenance is more convenient.
6. Square handlebolts, shock resistance, abrasion resistance.
7. High yield,stable performance.
8. Rough &medium crushing reaches the requirements by one-step, processsimplification.
9. Adopts highwear-resisting material hammer, screen plate and impact plate has long workinglife.
10. Low ancillarypower, low energy consumption, easy maintenance, low wearing parts.

2.Applications of box crusher:

HeavyBox Crusher is a new type of crushing machinery designed by our company. It hasborn most of the virtues of jaw crusher, hammer crusher and impact crusher.Heavy Box Crusher is mainly used in mining, building, chemical industry andmetallurgy for the primary and secondary crushing of materials.

3.Working Principles of box crusher:

Whenmaterials get into the area where the board hammer plays apart, under the impactfunction of board hammer at a high speed, the crushed ones are thrown to theimpact device above the rotor continuously. And then they are rebounded from heimpact liner to the area where the board hammer plays apart, impacted again.Materials from large ones to small ones get into the impact cavity for beingcrushed repeatedly. The process is going on until the materials are crushed torequired size and discharged from down of the machine.

4.Box Crusher Main Technical Parameters:

Model	700× 1000	900× 1200	1000× 1000	1200× 1200	1400× 1400	1600× 1600	1800× 1800
Rollerdiameter (mm)	700	900	1000	1200	1400	1600	1800
Rollerlength (mm)	1000	1200	1000	1200	1400	1600	1800
Production(t/h)	50-80	70-100	90-120	130-160	190-210	250-300	300-400
Material-insize(mm)	≤500mm	≤800mm	≤800mm	≤900mm	≤1000mm	≤1200mm	≤1200mm
Power(kw)	45-55	75-90	90-110	110-132	132-160	160-210	210-280

ServicePromise:

Before-sale services: Weguide customers to choose the best applicable device type and provide theadvanced, energy-saving and practical technological process, and also we areresponsible for the site planning and design.

On-sale services: products must be inspected strictlybefore sell, customers are invited to simulate and test machine on-the-spot andraise objections. We will organize delivery according to the clauses stipulatedin the contract.

After-sale services: OurCompany will send professional engineers to guide installation, debugging andtraining operators until customers are fully satisfied. Moreover, we can designand manufacture products according to customers' specificrequirement.

Address:Xigang Industrial Area,Zhengshang Road, Zheng zhou,Henan Province,China

Tel:0371 -67,826,860
