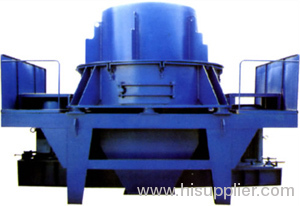

Widely Used Primary Vertical Shaft Impact Crusher With Low Price

Price:	1000.0~100000.0 USD
Payment Terms:	T/T,L/C,WU
Special Groups:	crushers (29)
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 600

Production Capacity: 100 every month

Delivery Date: 7~15 working days after the...

Type: Crusher

Capacity(t/h): 12-30

Max feed size(mm): 30

Weight(t): 5.6

Color: as you need

Certification: ISO:CE

Means of Transport: Ocean

Packing: Export standard container o...

Application: stone,ore,sand,etc

Brand Name: ZHONGCHENG

Impeller speed (r/min): 2000-3000

Power(kw): 2*30

Overall dimension(mm): 2800*1500*2030

Price: negotiable

1.High efficiency vertical shaft impact crusher
2.Low consumption;
3.Simple structure;
4.Low operating cost;
5.ISO:CE

Widely Used Primary Vertical Shaft Impact Crusher With Low Price

1.Introductionof the vertical shaft impact crusher:

Verticalshaft impact crusher is also known as sand making machine. It is widely used inmetals and non-metallic ores, cement, refractory, abrasives, glass rawmaterials, construction aggregate, artificial sand and a variety ofmetallurgical slag fine and coarse grinding. It has more advantages than othertypes of crusher, especially in hard and abrasive materials, such as siliconcarbide, carborundum, sintered bauxite, magnesite, etc. it can handle a varietyof metallurgical slag.

2.Operating principle of vertical shaft impact crusher:

Thematerials enter the crusher through feeder hopper, which is divided into twoparts, one part through the middle of classifier entering into the rotatingimpeller at high speed, then accelerated, whose speed can reach hundreds ofacceleration, then is shot through the tunnels around the impeller by the speedof 60-75 meter/second. First the materials will impact with some materialsfallen around classifier, then impact on the whirlpool cavity's skateboardtogether, then will be rebounded and impact on the top of the whirlpool cavity,then changes its direction and goes down, forms continual material layers withthe materials shot from the impeller. Therefore some materials will be impacted,crusher, milled twice or more times in the whirlpool cavity, then crushedmaterials will be excluded through the bottom discharging hole. This can from aclosed circulation through the circular classifier system; in general, materialscan be crushed into 20 meshes through thrice circulation. Airflowself-circulation in the whirlpool cavity can eliminate the dust pollutionwell.

3.Features of vertical shaft impact crusher:

1. Simplestructure and low operating cost.

2. Highefficiency and low consumption.

3. It canfine crush crude grind material and it is easy to maintain.

4. It isslightly influenced by the humidity of material and the max humidity is8%.

5. It ismore suitable for crushing mid-hardness materials.

6. Itsproducts are cubic, the density of piling up is high and the iron pollution islow.

7. Theworking noise is less than 75 decibels and dust pollution is light.

4. Main technical parameters of vertical shaft impact crusher:

Type	Max. feed size (mm)	Power (Kw)	Impeller speed (r/min)	Capacity (t/h)	Overall dimension (mm)	Weight(include motor) (t)
PCL-600	30	2×30	2000-3000	12-30	2800×1550×2030	5.6
PCL-750	35	2×45	1500-2500	25-55	3300×1800×2440	7.3
PCL-900A	40	2×55	1200-2000	55-100	3750×2120×2660	12.1
PCL-900B	40	2×75	1000-1450	65-130	3750×2300×2090	13.6
PCL-1050	45	2×(90-110)	1000-1700	100-160	4480×2450×3906	16.9
PCL-1250	45	2×(132-180)	850-1450	160-300	4563×2650×3716	22
PCL-1350	50	2×(180-220)	800-1193	200-360	5340×2940×3650	26

Service Promise:

Before-sale services: Weguide customers to choose the best applicable device type and provide theadvanced, energy-saving and practical technological process, and also we areresponsible for the site planning and design.

On-sale services: products must be inspected strictlybefore sell, customers are invited to simulate and test machine on-the-spot andraise objections. We will organize delivery according to the clauses stipulatedin the contract.

After-sale services: OurCompany will send professional engineers to guide installation, debugging andtraining operators until customers are fully satisfied. Moreover, we can designand manufacture products according to customers' specificrequirement.

Note:for information purposes only, any questions please contact us!
