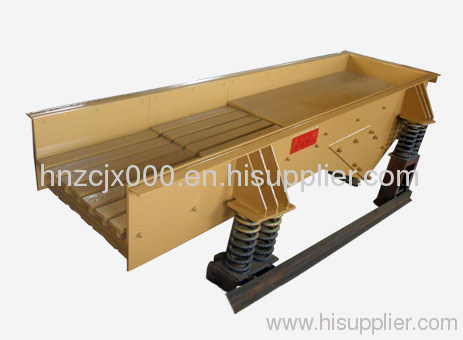

China Zhongcheng Popular Electromagnetic Vibrating Feeder Used In Industry

Price:	1000.0~100000.0 USD
Payment Terms:	T/T,L/C,WU
Special Groups:	feeders (10)
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GZD-1100*4900

Production Capacity: 100 every month

Delivery Date: 7~15 working days after the...

Type: Feeder Machine

Capacity(t/h): 280-500

Max feed size(mm): 580

Weight(kg): 4520

Performance: good

Color: as you need

Means of Transport: Ocean

Packing: Export standard container o...

Application: Others

Brand Name: ZHONGCHENG

Size of funnel(mm): 1100*4900

Power(kw): 15

Overall dimension(mm): 5200*2050*1700

Certificate: ISO:CE

Services: technical guidance

Vibrating feeder :
1 High quality and lowe price
2 Top brand zhongcheng
3 Convenient transportation
4 Reasonable structure

China Zhongcheng Popular Electromagnetic Vibrating Feeder Used In Industry

1.Briefintroduction of vibrating feeder:

Vibratinggiver also known as vibrating feeder, our company produce the GZD serial ofvibrating feeder, it is a special new designed vibrating feeder for uniformtransmission the large materials before the crusher of coarse screening, it useddouble eccentric shaft vibration of the structural characteristics, to ensurethe equipment can suffer the impact of big material falling, to prevent thephenomenon of death which caused by uneven feed to feeder device, extend theequipment using life. feeder machine can divided into plate structure and gratestructure.

2.Workingprinciple of vibrating feeder :

GZD serialof vibrating feeder is composed of feeder groove, exciter, spring bearing, gearetc. the vibration source of the groove feeding vibration is exciter, exciter iscomposed of two eccentric shaft and gear, the motor through the triangle todrive the active axis. the up gear of the active axis drives the passive-axiswith rotating, active and passive axis reverse rotation at the same time, makethe body vibrate and continuous flow of materials, to achieve the purpose ofconveying materials.

3.Technicalparameters of vibrating feeder :

type	Trough size (mm)	Max. feeding size (mm)	Capacity (t/h)	Power (kw)	Overall dimension (mm)	Weight (kg)
GZD-850x3000	850x3000	400	80-120	7.5	3110x1800x1600	3895
GZD-960x3800	960x3800	500	120-210	11-15	3850x1950x1630	3980
GZD-1100x4200	1100x4200	580	200-430	11-15	4400x2050x1660	4170
GZD-1100x4900	4900x1100	580	280-500	15-18.5	5200x2050x1700	4520
GZD-1300x4900	4900x1300	650	450-600	18.5-22	5200x2350x1750	5200

Before-saleservices: We guide customers to choose the bestapplicable devicetype and provide the advanced, energy-saving and practical technologicalprocess, and also we are responsible for the site planning anddesign.

On-saleservices:products must be inspected strictlybefore sell, customers are invited to simulate and test machine on-the-spot andraise objections. We will organize delivery according to the clauses stipulatedin the contract.

After-saleservices:Our Company will send professionalengineers to guide installation, debugging and training operators untilcustomers are fully satisfied. Moreover, we can design and manufacture productsaccording to customers' specific requirement.

Note:for information purposes only, any questions please contact us!
