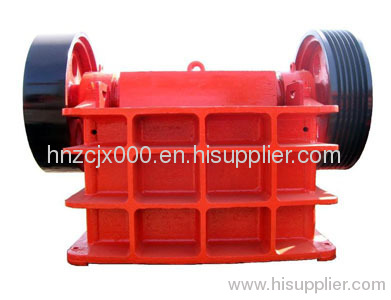

jaw crusher manufacturer jaw crusher from China manufacturer

Price:	1000.0~100000.0 USD
Payment Terms:	T/T,L/C,WU
Special Groups:	crushers (29)
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: PE150*250

Production Capacity: 100 every month

Delivery Date: 7~15 working days after the...

Type: Crusher

Max feed size(mm): 125

Motor power(kw): 5.5-7.5

Adjustment scopes(mm): 10-40

Color: as you need

Warranty period: 1 year

Means of Transport: Ocean

Packing: Export standard container o...

Application: Others

Brand Name: ZHONGCHENG

Capacity(t/h): 1-3

Speed(r/min): 285

Dimension(mm): 922*745*933

Q/C: ISO9001:2008

Quality: high

1.ZCM PE Jaw Crusher:
2.Never blocking;
3.Manganese steel Jaw plates;
4.Lifetime free maintainence;
5.SGS&ISO Certificate

The Best Stone Crusher-Jaw Crusher's Gold Supplier

1.Briefintroduction of Jaw crusher:

PE serious ofJaw crusher is a kind of rough crushing device which is widely used both at homeand abroad at present. It is mainly used in primary and rough crushing of allkinds of hard rocks and large block material. Large and medium-sized jawcrushers are the main products of our company and have taken the leadingposition in the world.

2.Applicationof Jaw crusher:

Mining Jawcrusher is applicable for primary and rough crushing, widely used in thesefollowing industries:ore, sand and gravel plant, building material, road,railway, water conservancy and hydropower industry,etc.

3.Workingprinciple of Jaw crusher:

Firstly themachine's leather belt and wheel are driven by the electric motor, then themovable jaw plate begins to move up and down by the eccentric shaft, when themovable jaw plate moves from top to bottom, the angle between fixed jaw plateand movable jaw plate becomes smaller, the material is crushed into pieces toreach the crushing target. When the movable jaw plate moves from bottom to top,the angle between fixed jaw plate and movable jaw plate becomes bigger, themovable jaw plate deviates from the fixed jaw plate under the function of dragrod and spring, at this moment, the crushed material is discharged from thebottom outlet of the crushing cavity.

4.Feathersand advantages of Jaw crusher:

(1). Largecrushing ratio, high productivity;

(2). Evenparticles, simple structure;

(3). Largecrushing ability as the primary crusher machine;

(4). Durablejaw plates and long lifetime spare parts;

(5).Convenient maintenance, low cost,etc.

5.Specificationsof Jaw crusher:

Type	Feedopening (mm)	feedingsize(mm)	feedopening (mm)	Handlingcapacity(t/h)	shaft speed(r/min)	power (kw)	weight (t)	Overalldimensions (L×W×H)(mm)
PE150×250	150×250	120	10-40	1-3	250	5.5	0.6	720×660×850
PE200×300	200×300	180	15-50	2-6	260	7.5	1	910×750×990
PE200×350	200×350	180	18-70	3-10	260	11	1.3	1000×870×990
PE250×400	250×400	210	20-60	5-20	300	15	2.8	1300×1090×1270
PE250×500	250×500	250	30-75	8-32	285	18.5	3.2	1420×1160×1360
PE400×600	400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE500×750	500×750	425	50-100	40-110	275	55	12	1980×2080×1870
PE600×900	600×900	500	75-160	50-180	250	55-75	17	2190×2206×2300
